Have you ever wondered why some engines produce more power than others while having the same displacement? The answer lies in the bore and stroke ratio of the engine. Understanding the bore and stroke chart can help you make informed decisions when selecting an engine or building one from scratch. In this article, we’ll take a deep dive into the bore and stroke chart and explain everything you need to know in simple terms.
What is Bore and Stroke?
The bore of an engine is the diameter of the cylinder where the piston moves up and down. The stroke, on the other hand, is the distance the piston travels from top dead center (TDC) to bottom dead center (BDC). The bore and stroke dimensions determine the engine displacement, which is the total volume of air/fuel mixture the engine can ingest and combust in one cycle.
The bore and stroke ratio is expressed as a numerical value, such as 1.5:1 or 2.0:1. This ratio indicates the relationship between the bore and stroke dimensions. A higher ratio means a larger bore and a shorter stroke, while a lower ratio means a smaller bore and a longer stroke.
Why Does Bore and Stroke Ratio Matter?
The bore and stroke ratio has a significant impact on the engine’s characteristics and performance. An engine with a larger bore and a shorter stroke tends to rev higher and produce more power in the higher RPM range. This type of engine is suitable for high-performance applications, such as racing or sporty driving.
On the other hand, an engine with a smaller bore and a longer stroke tends to produce more torque in the lower RPM range. This type of engine is ideal for low-speed applications, such as hauling heavy loads or towing.
How to Read a Bore and Stroke Chart?

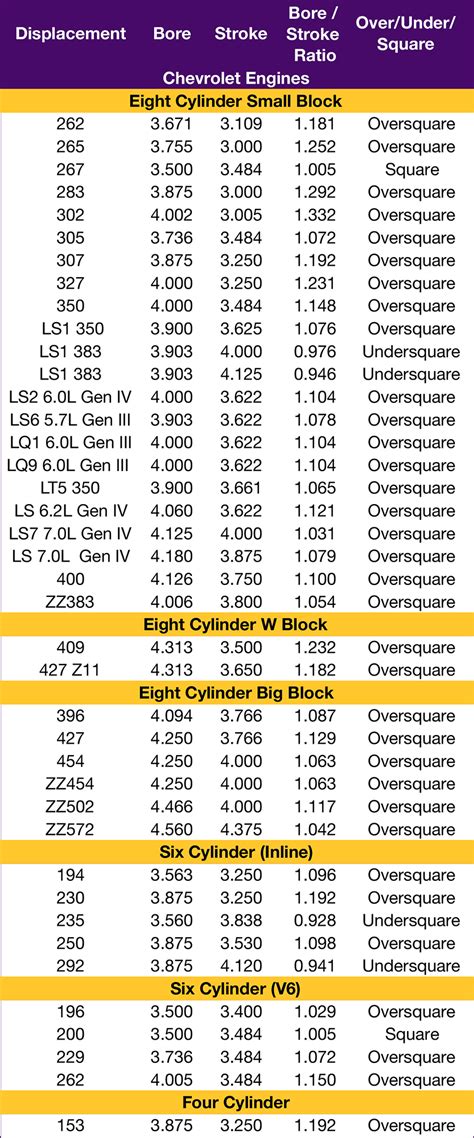

A bore and stroke chart displays the bore and stroke dimensions for different engines. The chart usually includes the engine displacement, the number of cylinders, the bore dimension, and the stroke dimension. The chart may also include other relevant information, such as the horsepower and torque ratings.
Example of a Bore and Stroke Chart
| Engine | Displacement | Cylinders | Bore | Stroke |
|---|---|---|---|---|
| Toyota 2JZ-GTE | 3.0L | 6 | 86mm | 86mm |
| Chevrolet LS7 | 7.0L | 8 | 104.8mm | 101.6mm |
| Ford Coyote | 5.0L | 8 | 92.2mm | 92.7mm |
How to Choose the Right Bore and Stroke?
Choosing the right bore and stroke depends on your specific needs and goals. If you want a high-revving engine that produces more power in the higher RPM range, a larger bore and a shorter stroke is the way to go. However, if you need more low-end torque for hauling or towing, a smaller bore and a longer stroke is the better choice.
Keep in mind that changing the bore and stroke ratio of an engine is not a simple task. It often involves significant modifications to the engine block, crankshaft, and other internal components. If you’re building an engine from scratch, it’s best to consult with an experienced engine builder to ensure you’re making the right decisions.
Bore and Stroke Chart Common Myths
There are several myths surrounding the bore and stroke chart that can be misleading. Let’s debunk some of the most common ones.
Myth #1: A Larger Bore Always Means More Power
While a larger bore can increase power output, it’s not always the case. The bore and stroke ratio must be balanced to achieve optimal performance. A poorly designed engine with a large bore and short stroke can lead to poor fuel economy, overheating, and premature engine failure.
Myth #2: Longer Stroke Equals More Torque
While a longer stroke can increase low-end torque, it’s not the only factor. The engine’s camshaft, cylinder head, and intake/exhaust system also play a significant role in torque production. A poorly designed engine with a long stroke can lead to sluggish performance, poor acceleration, and excessive emissions.
Conclusion
The bore and stroke chart is a crucial aspect of engine design and performance. Understanding the relationship between bore and stroke can help you choose the right engine for your needs or build one from scratch. Keep in mind that the bore and stroke ratio must be balanced to achieve optimal performance, and changing it is not a simple task. Always consult with an experienced engine builder to ensure you’re making the right decisions.
